HYDRAULIC CYLINDERS

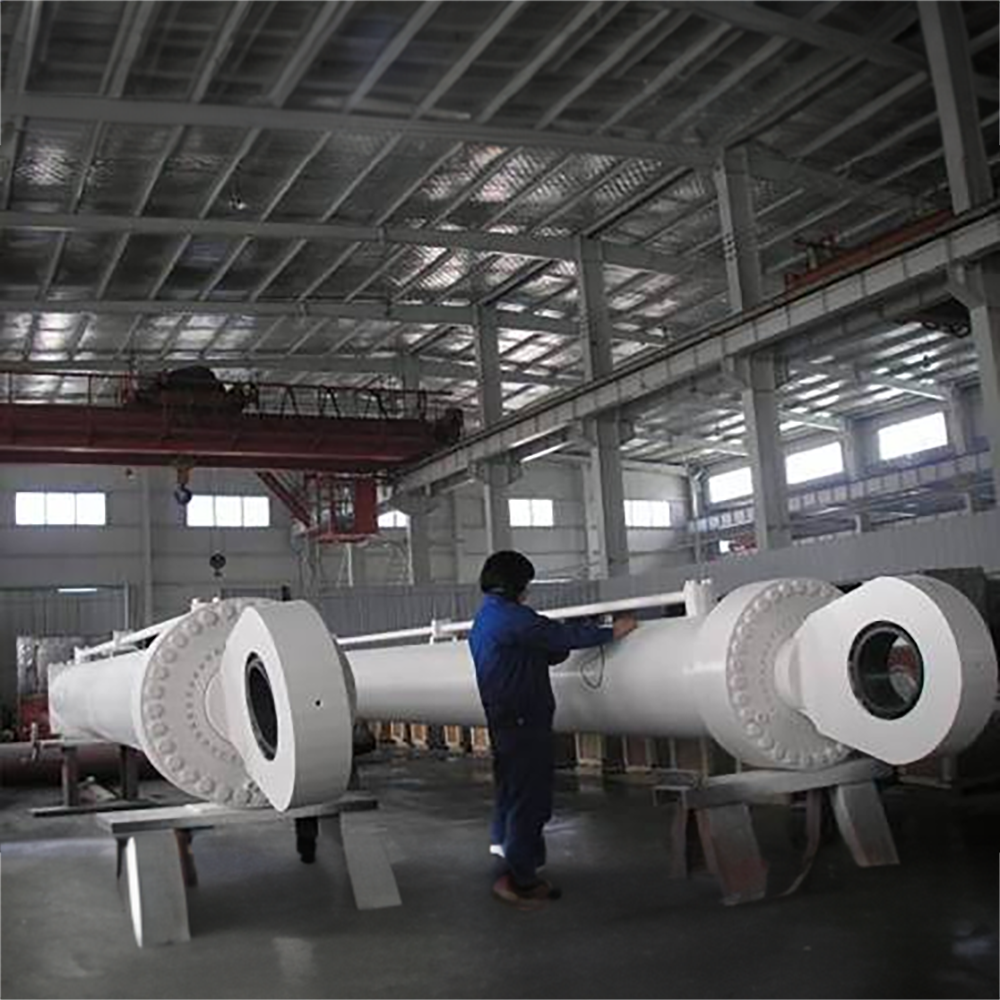

Marine Deck Crane Hydraulic Cylinder
Marine Deck Crane Hydraulic Cylinder The Marine Deck Crane Hydraulic Cylinder is engineered for reliable performance in demanding offshore and shipboard crane applications. Designed for heavy lifting
- Primary application
- Crane and lifting equipment
- Customization
- Dimensions, stroke and interfaces
- Rod treatment
- Hard chrome plating
- Engineering support
- Drawing review and system integration
For drawings or project requirements: wenyanchen778@gmail.com
Product Overview
Marine Deck Crane Hydraulic Cylinder
Marine Deck Crane Hydraulic Cylinder The Marine Deck Crane Hydraulic Cylinder is engineered for reliable performance in demanding offshore and shipboard crane applications. Designed for heavy lifting
Marine Deck Crane Cylinder RFQ Checklist
A deck-crane cylinder must match the crane linkage and rated working envelope. Cylinder force changes with boom angle and load radius; a nominal crane capacity is not enough to define the actuator. The design should cover both controlled movement and holding a suspended load.
Design and installation review
Provide boom geometry, pivot locations, stroke, speed, rated and exceptional loads, and the intended valve arrangement. Review buckling at the longest extension, pin and bearing reactions, hose routing through the crane motion and corrosion at exposed surfaces.
What to include in an inquiry
Specify the vessel environment, fluid, temperature range, inspection interval and documentation required by the project. Confirm the relevant crane and vessel approval requirements with the responsible engineer before finalizing the cylinder and load-control circuit.
Related technical guide: Marine Deck Crane Cylinder RFQ Checklist.
Configuration, dimensions and performance are confirmed against the approved project drawings; this section is specification guidance rather than a fixed catalog rating.
Project-Specific Configuration
Final technical parameters are confirmed after drawing review and operating-condition evaluation.
ENGINEERING FEATURES
Built for Durability, Control and Custom Integration
TYPICAL APPLICATIONS
Applications
Yongjian supports equipment manufacturers, engineering contractors and industrial project teams with customized hydraulic cylinders for lifting, positioning and load-control functions.
- 01Bridge CranesLoad transmission and positioning for industrial lifting systems.
- 02Gantry CranesReliable actuation for heavy-duty travel and lifting equipment.
- 03Marine and Deck EquipmentCustom hydraulic actuation for demanding operating environments.
- 04Special Lifting MachineryDrawing-based cylinders for non-standard equipment and assemblies.
CUSTOM PROJECT PROCESS
Engineering and Manufacturing Process
Our engineers coordinate technical review, manufacturing, inspection and delivery support around the requirements of each hydraulic project.
- 1
Application Review
Confirm load, stroke, speed, environment, standards and interface requirements.
- 2
Engineering Design
Complete hydraulic calculations, drawings, material selection and design review.
- 3
Controlled Manufacturing
Machine, weld, heat treat, coat and assemble under documented quality controls.
- 4
Inspection & Testing
Perform dimensional inspection, pressure testing, leakage testing and functional verification.
- 5
Documentation & Delivery
Issue inspection records, certificates, packing documents and shipment protection.
RELATED PRODUCTS
Related Products
Hydraulic Cylinders
Port Shiploader Luffing Hydraulic Cylinder
Marine Cylinders
Split-Type Hydraulic Cylinder for Mud Barges
PRODUCT FAQ
Frequently Asked Questions
Technical parameters are confirmed according to equipment drawings, load conditions and installation requirements.
Yes. We review drawings, operating conditions, standards and interfaces before confirming the manufacturing route.
Provide bore, rod diameter, stroke, pressure, load, speed, mounting, environment, quantity and drawings when available.
Yes. The scope can include pumps, valves, tanks, cooling, filtration, controls, sensors and commissioning support.
Materials and surface protection are selected according to load, corrosion, temperature, wear and specified project standards.
Test procedures can include proof pressure, leakage, movement, cushioning and functional checks according to the agreed inspection plan.
Third-party or customer inspection points can be incorporated into the agreed quality plan.
The scope may include drawings, material certificates, dimensional reports, welding records, coating records and test reports.
Packing and preservation are selected according to product size, transport mode, storage period and destination conditions.
