HYDRAULIC CYLINDERS
Oil Contamination Detection Instrument
Oil Contamination Detection Instrument The Oil Contamination Detection Instrument is designed for fast and accurate evaluation of oil cleanliness levels. By monitoring particles in the range of 1–350
- Primary application
- Crane and lifting equipment
- Customization
- Dimensions, stroke and interfaces
- Rod treatment
- Hard chrome plating
- Engineering support
- Drawing review and system integration
For drawings or project requirements: wenyanchen778@gmail.com
Product Overview

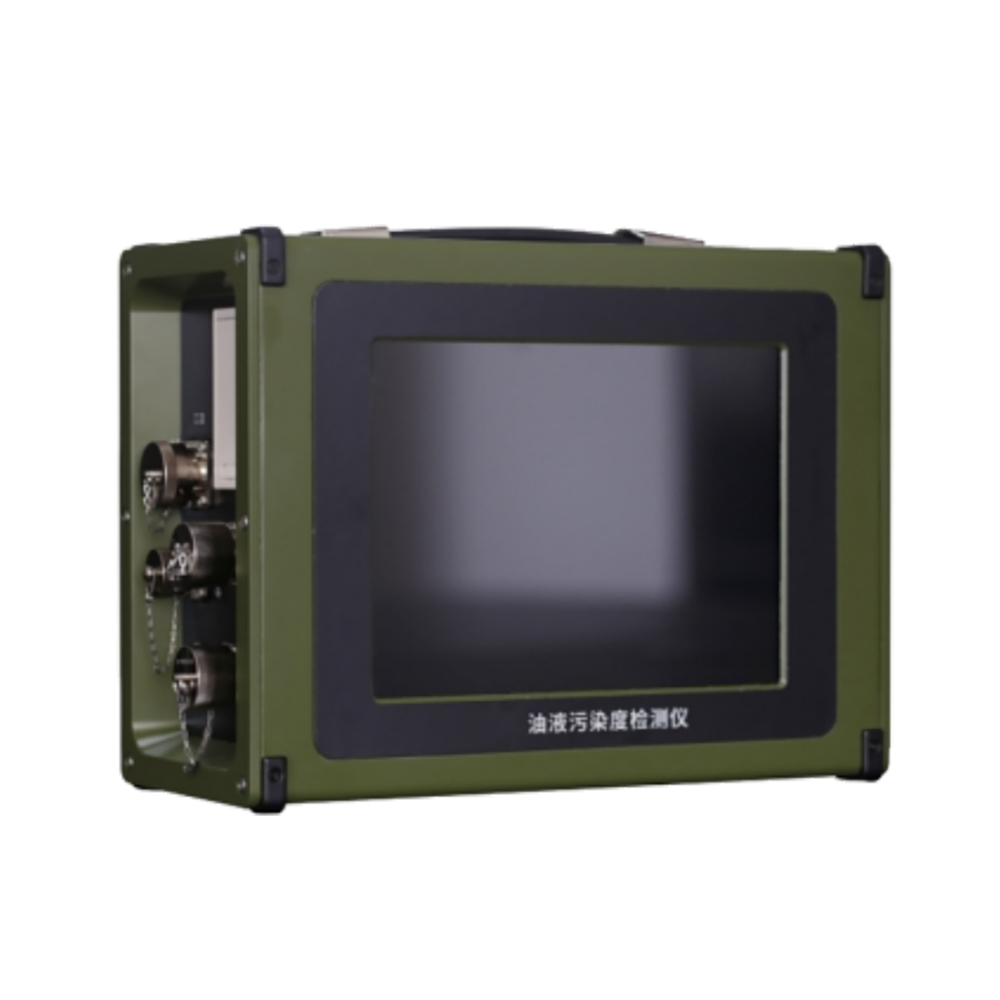

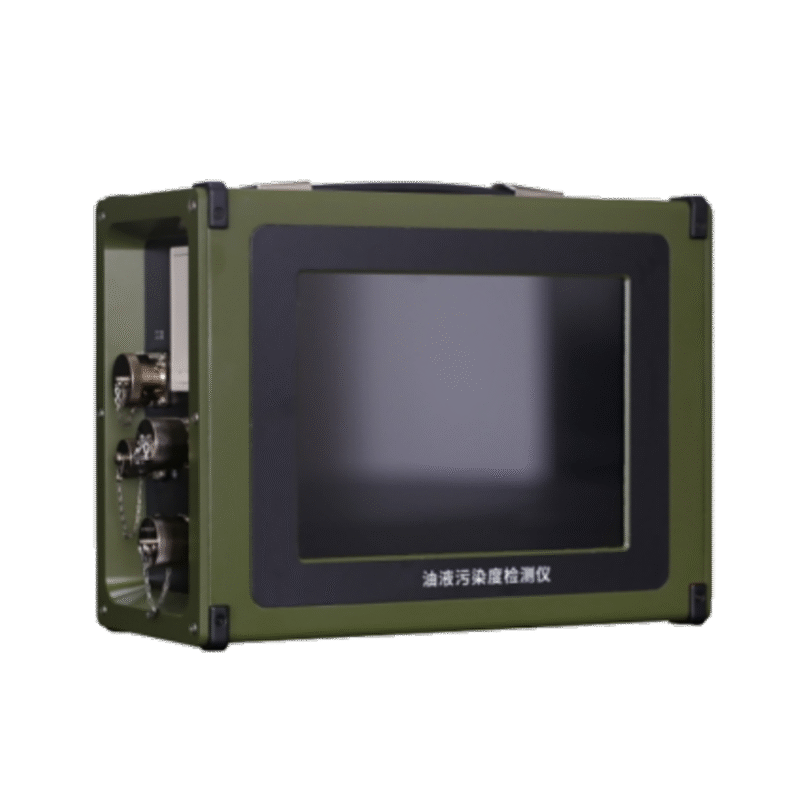

Oil Contamination Detection Instrument
Enhanced product illustration based on the original photograph. Final configuration should be confirmed from current drawings; the original photograph remains in the gallery.
Oil Contamination Detection Instrument The Oil Contamination Detection Instrument is designed for fast and accurate evaluation of oil cleanliness levels. By monitoring particles in the range of 1–350
Oil contamination instrument deployment
An oil contamination instrument can support cleanliness control during assembly, flushing, and service. Results depend on the sampling procedure as much as on the instrument: bubbles, mixed fluids, dirty bottles, and unstable flow can distort readings.
Engineering review
Agree on the cleanliness classification method and the measurement location before setting an alarm threshold. Provide a safe, repeatable sample connection and record oil temperature and machine state with every reading. When a result is unexpectedly high, repeat the sample and investigate filtration and ingress routes.
Information for a project inquiry
Send the fluid specification, target cleanliness code, sample-port connection, flow and pressure conditions, and reporting format. Request calibration information, applicable measurement range, maintenance instructions, and verification against a reference sample.
Product configuration and performance are confirmed from approved project drawings; this section is application guidance.
Project-Specific Configuration
Final technical parameters are confirmed after drawing review and operating-condition evaluation.
ENGINEERING FEATURES
Built for Durability, Control and Custom Integration
TYPICAL APPLICATIONS
Applications
Yongjian supports equipment manufacturers, engineering contractors and industrial project teams with customized hydraulic cylinders for lifting, positioning and load-control functions.
- 01Bridge CranesLoad transmission and positioning for industrial lifting systems.
- 02Gantry CranesReliable actuation for heavy-duty travel and lifting equipment.
- 03Marine and Deck EquipmentCustom hydraulic actuation for demanding operating environments.
- 04Special Lifting MachineryDrawing-based cylinders for non-standard equipment and assemblies.
CUSTOM PROJECT PROCESS
Engineering and Manufacturing Process
Our engineers coordinate technical review, manufacturing, inspection and delivery support around the requirements of each hydraulic project.
- 1
Application Review
Confirm load, stroke, speed, environment, standards and interface requirements.
- 2
Engineering Design
Complete hydraulic calculations, drawings, material selection and design review.
- 3
Controlled Manufacturing
Machine, weld, heat treat, coat and assemble under documented quality controls.
- 4
Inspection & Testing
Perform dimensional inspection, pressure testing, leakage testing and functional verification.
- 5
Documentation & Delivery
Issue inspection records, certificates, packing documents and shipment protection.
RELATED PRODUCTS
Related Products
Oil Condition Monitoring
Oil Health Management System
Oil Condition Monitoring
Oil Debris Detection Instrument & Comprehensive Analysis System
PRODUCT FAQ
Frequently Asked Questions
Technical parameters are confirmed according to equipment drawings, load conditions and installation requirements.
Yes. We review drawings, operating conditions, standards and interfaces before confirming the manufacturing route.
Provide bore, rod diameter, stroke, pressure, load, speed, mounting, environment, quantity and drawings when available.
Yes. The scope can include pumps, valves, tanks, cooling, filtration, controls, sensors and commissioning support.
Materials and surface protection are selected according to load, corrosion, temperature, wear and specified project standards.
Test procedures can include proof pressure, leakage, movement, cushioning and functional checks according to the agreed inspection plan.
Third-party or customer inspection points can be incorporated into the agreed quality plan.
The scope may include drawings, material certificates, dimensional reports, welding records, coating records and test reports.
Packing and preservation are selected according to product size, transport mode, storage period and destination conditions.
